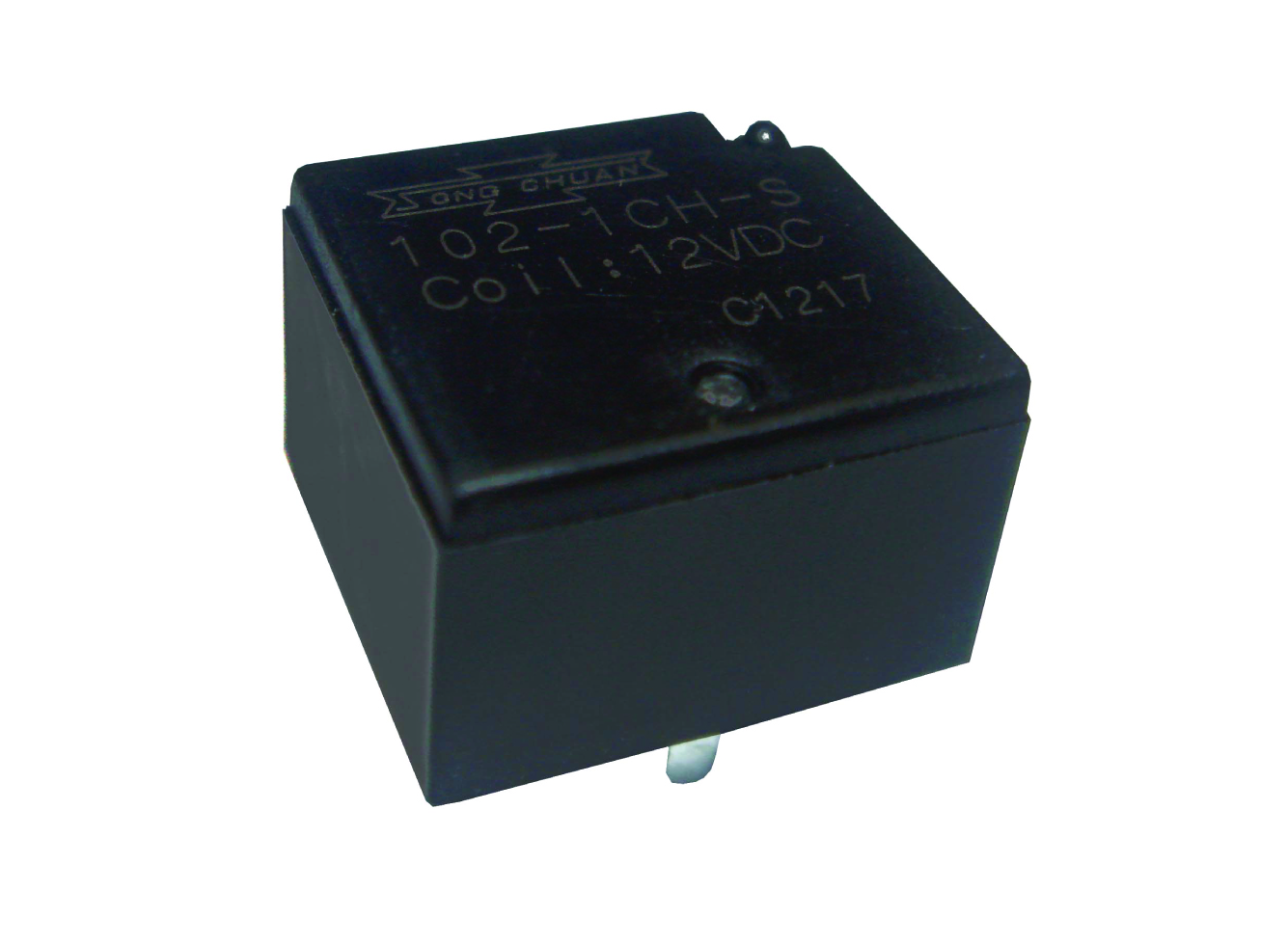

  • Name：Song Chuan Relay

    Model：102

    Description

    • Miniature PCB automobile relay with reduced size
    • Motor control for wiper, sunroof and lathe lifting
    • 20A rated current, maximum switching current 30A
    • High temperature resistance up to 125 ℃
    • Suitable for infrared reflow processing (special specifications)
    • Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives
    PDF

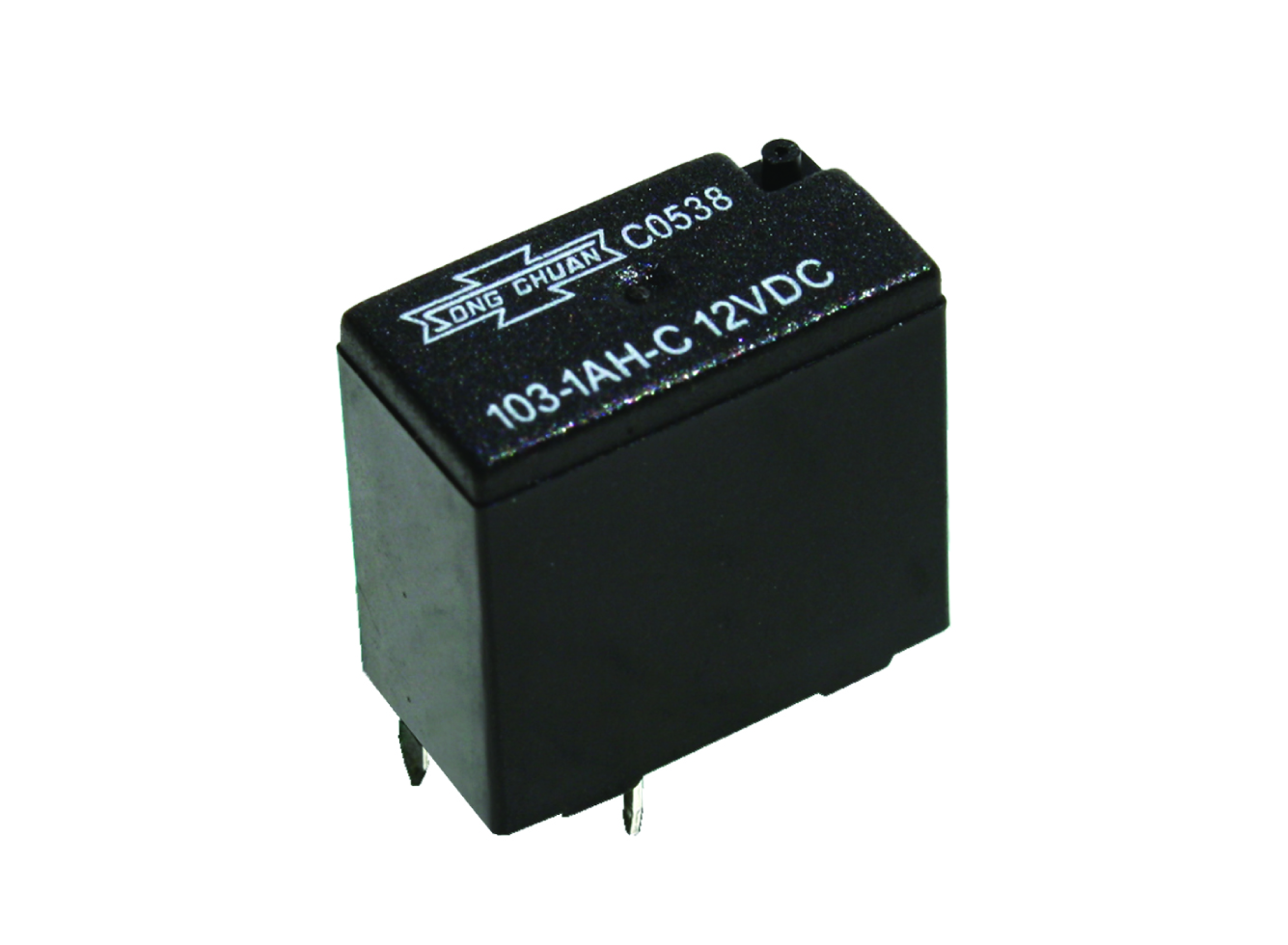

  • Name：Song Chuan Relay

    Model：103

    Description

    • Minimum thin PCB automobile relay
    • High power 20A, maximum switching current 30A
    • High temperature resistance up to 125 ℃
    • Single relay and double relay are available
    • Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives
    PDF

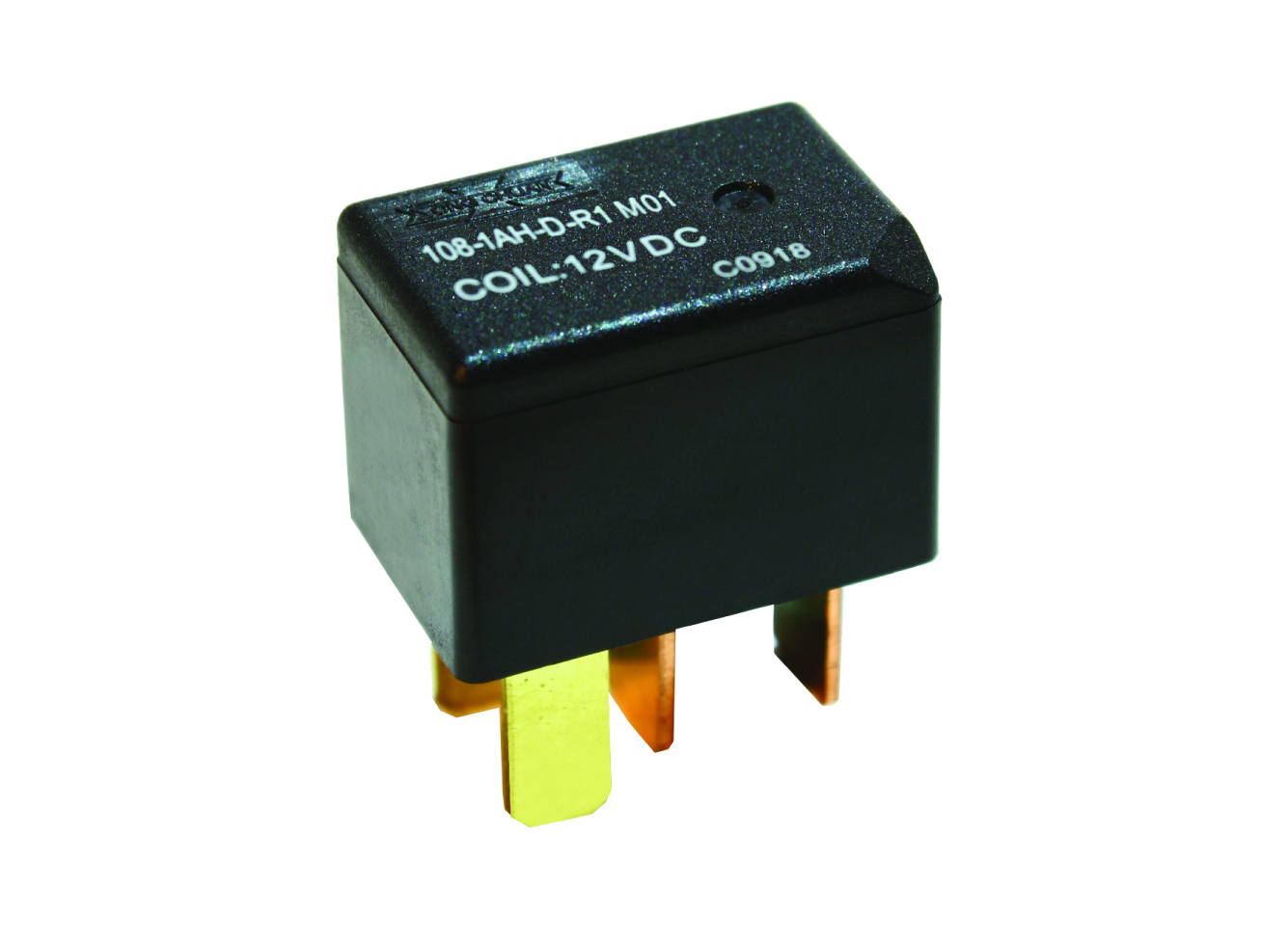

  • Name：Song Chuan Relay

    Model：108

    Description

    • Miniature ISO auto relay
    • Contact form: a group of normally open type
    • High power up to 25A resistive load, 100000 times, 23 ℃
    • Working ambient temperature - 40 ℃~105 ℃
    • Can be matched with diodes or resistors
    • Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives
    PDF

  • Name：Song Chuan Relay

    Model：110

    Description

    • High power sugar relay
    • Contact spacing 1.5mm, 2.1mm
    • Comply with European photovoltaic standard IEC 62109-1
    • The holding voltage can be reduced to 36%/55% V of the rated voltage of the coil
    • For photovoltaic system, motor and compressor control, household appliance application
    • Comply with RoHS 2011/65/EU directive
    PDF

  • Name：Song Chuan Relay

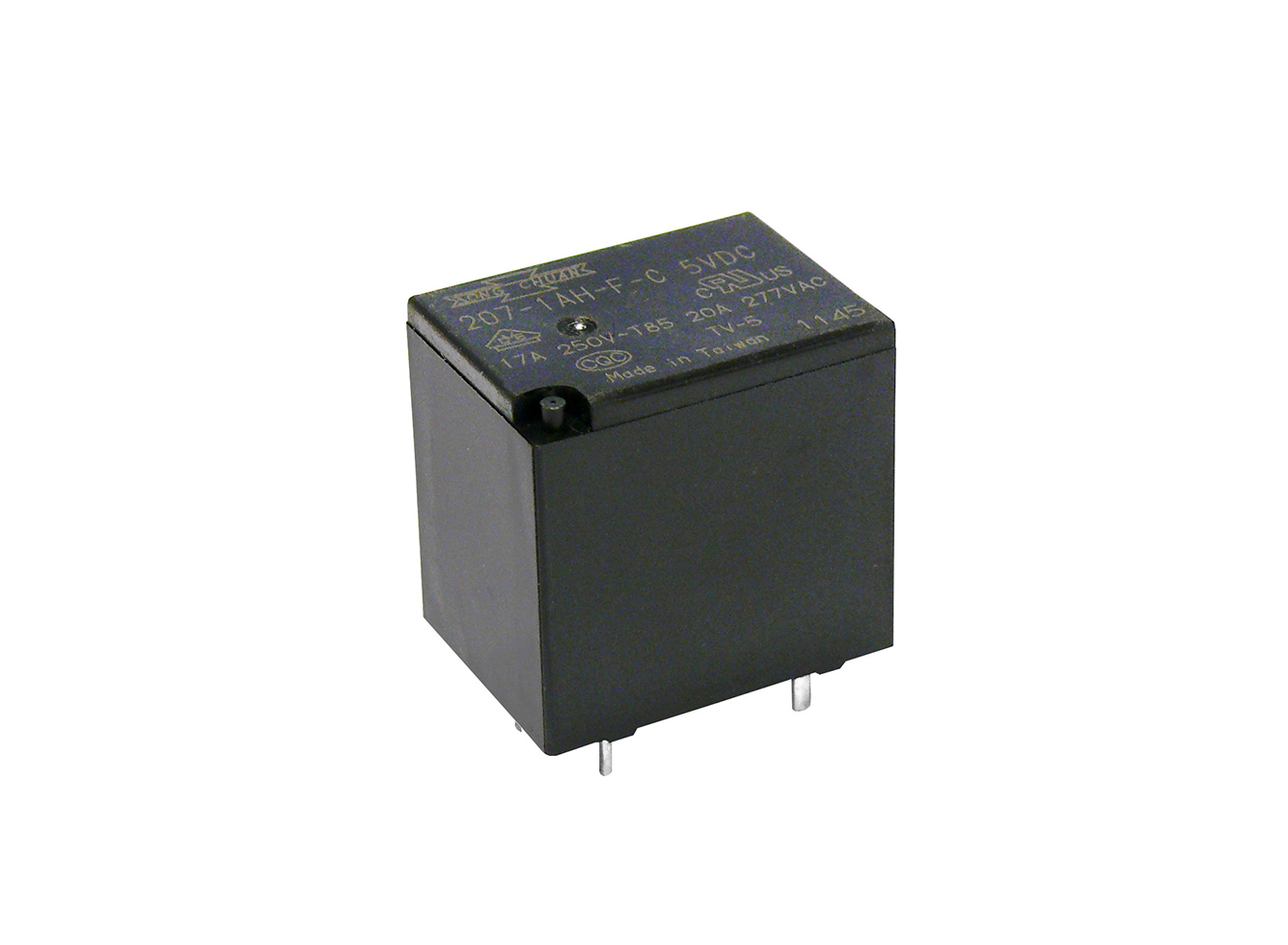

    Model：207/207X

    Description

    • 20A/120VAC, 16A/240VAC, 35A/250VAC TV-8 high-power relay
    • Provide anti-flux type, sealed type and sealed washable type
    • Provide material of CTI 250 or products conforming to IEC 60335-1
    • PV inverter, charging gun, 11kw charging gun, motor control, compressor control and household appliance application
    • UL and VDE certification are provided, and comply with RoHS 2011/65/EU directive
    • Halogen-free specifications are available, with the smallest volume and the largest density current in the world
    PDF

  • Name：Song Chuan Relay

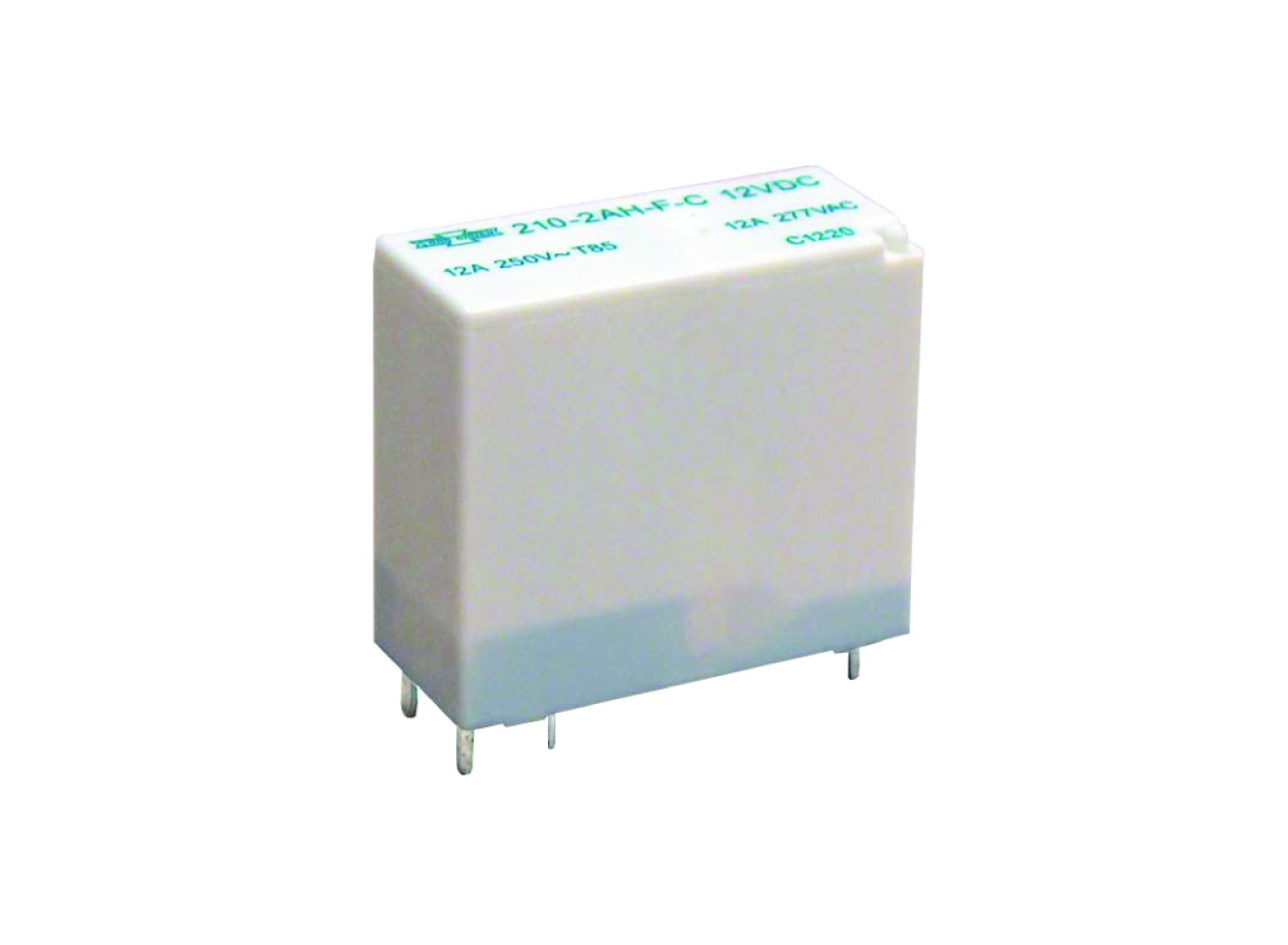

    Model：210

    Description

    • 12A/14A/16A small PCB relay,
    • Contact spacing 1.85mm, 2.1mm
    • The holding voltage can be reduced to 45~60% (210) of the rated voltage of the coil
    • The holding voltage can be reduced to 45~55% (210H) of the rated voltage of the coil
    • High performance power, can be used in photovoltaic system
    • Comply with European photovoltaic IEC 62109-1, RoHS 2011/65/EU
    PDF

  • Name：Song Chuan Relay

    Model：215H

    Description

    • Application products of the new generation of square sugar relay
    • Provide NO terminal for selecting two-pin type
    • Provide high insulation type
    • Provide material of CTI 250 or products conforming to IEC 60335-1
    • Comply with RoHS 2011/65/EU directive
    PDF

  • Name：Song Chuan Relay

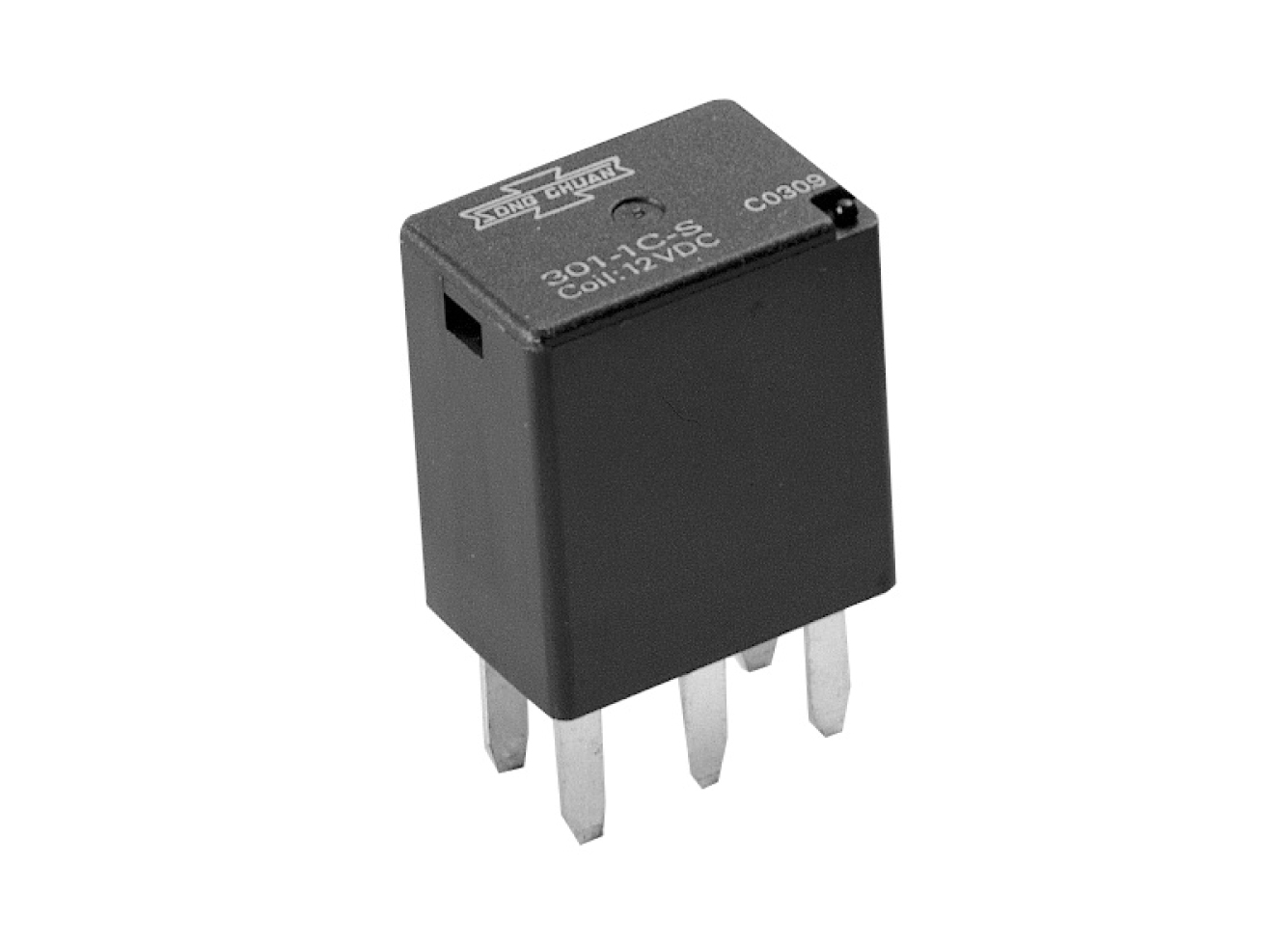

    Model：301

    Description

    • Miniature 280 leading-out automobile relay
    • The contact form includes a group of normally open type and a group of convertible type
    • Normally open contact can reach 34A resistive load
    • Normally closed contact can reach 20A resistive load, 100000 times, 23 ℃
    • Working ambient temperature - 40 ℃~125 ℃
    • Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives
    PDF

  • Name：Song Chuan Relay

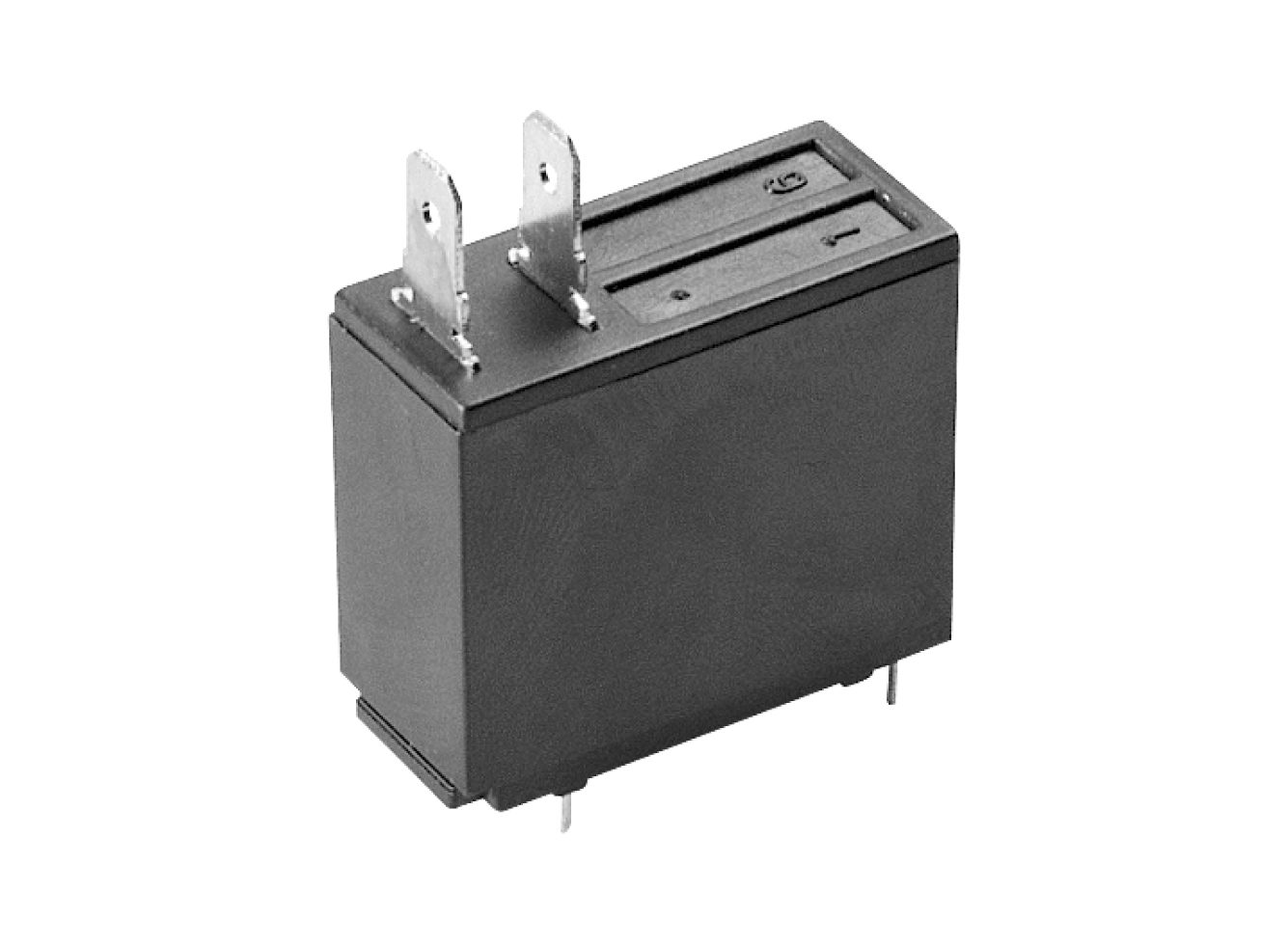

    Model：302

    Description

    • 20A small PCB power relay
    • A set of normally open contacts with quick-connect leads
    • The contact and coil can withstand 5KV withstand voltage and 10K pulse impulse voltage
    • Typical application of electric heating control for high-power household appliances
    • Comply with RoHS 2011/65/EU directive
    PDF

  • Name：Song Chuan Relay

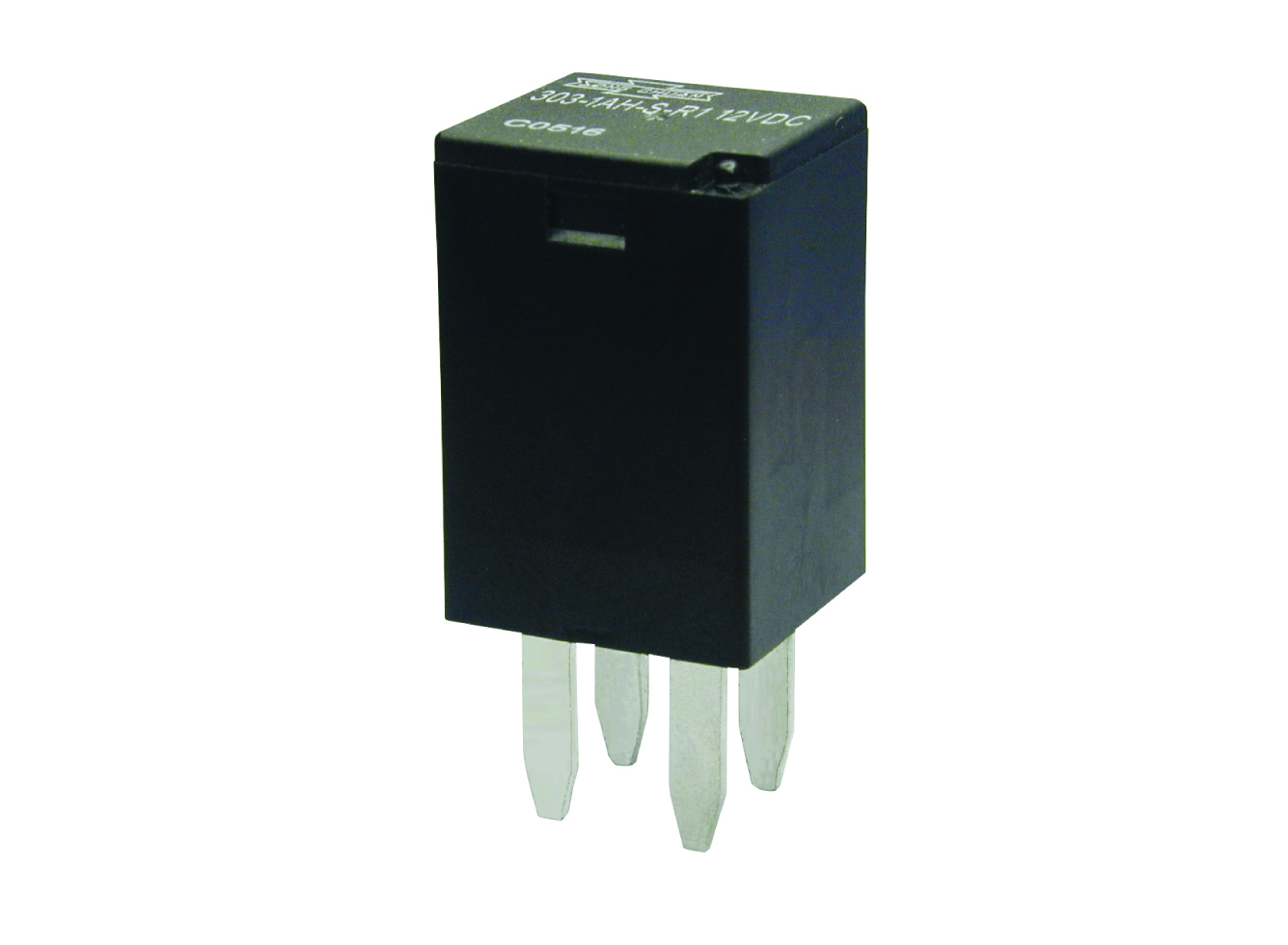

    Model：303

    Description

    • Subminiature 280 leading-out terminal automobile relay
    • Contact form: a group of normally open type
    • High power can reach 20A resistive load, 100000 times, 23 degrees
    • Working ambient temperature - 40 ℃~125 ℃
    • Can be matched with diodes or resistors
    • Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives
    PDF

  • Name：Song Chuan Relay

    Model：307

    Description

    • Load up to 12A/125VAC、10A/250VAC/30VDC
    • Provide UL/UL, TUV, VDE certification
    • Provide 0.45W and 0.20W coil power consumption
    • Provide CTI250 material or products conforming to IEC60335-1
    • Comply with RoHS2011/65/EU directive
    • Halogen-free and explosion-proof specifications available
    PDF

  • Name：Song Chuan Relay

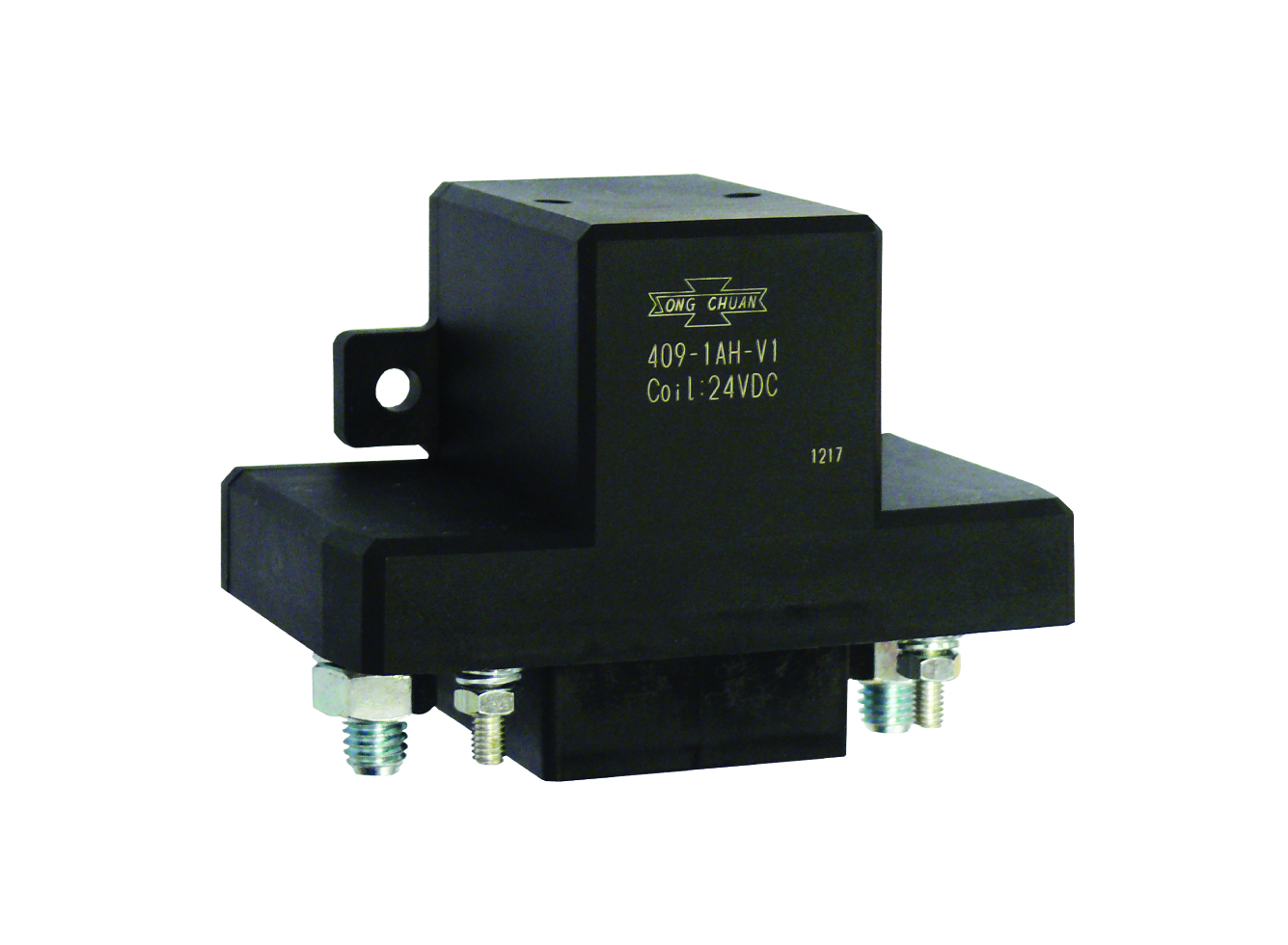

    Model：409

    Description

    • High power 200A automobile relay
    • Contact type: one group of normally open type
    • Up to 200A resistive load, 50K times, 23 ℃
    • Can be matched with diodes or resistors
    • Comply with RoHS 2011/65/EU and ELV 2000/53/EC directives
    PDF
